Architectural Shingle Roof Replacement and Plywood Decking in Manalapan Township, NJ
Roof replacement in Manalapan Township, NJ included removal of the existing architectural shingles, large-scale plywood decking replacement, synthetic underlayment, ice-and-water protection, flashing improvements, and a new gray-to-charcoal architectural shingle roof across the main home and attached garage sections.
Project summary
This scheduled roof replacement updated a large occupied single-family residence in Manalapan Township, Monmouth County, NJ 07726. The property includes multiple gables, hips, valleys, dormers, intersecting roof planes, attached garage sections, extensive landscaping, a pool, and patio areas below the work zones.
The roof area was approximately 5,500–7,000 square feet across more than 10 interconnected roof planes. The project was completed over several days during the late-summer to early-fall season, with tarps, staging, and careful protection used around the home and landscaped property.
Problem found
The existing architectural shingles had reached an advanced stage of age-related wear, and multiple sections of the roof deck had deteriorated. Water intrusion had affected portions of the old sheathing, making some areas unsuitable as a base for a new roofing system.
Several roof planes had to be stripped down to the rafters so the damaged plywood could be removed and replaced. The complex valleys, dormers, roof intersections, penetrations, and roof-to-wall transitions also required detailed waterproofing. No major failure of the main roof framing is visible in the project documentation.
Work completed
- Removed the existing asphalt shingles, old underlayment, and deteriorated roof sheathing.
- Opened large roof sections down to the rafters where the decking required complete replacement.
- Inspected the exposed roof structure and retained serviceable insulation between the rafters.

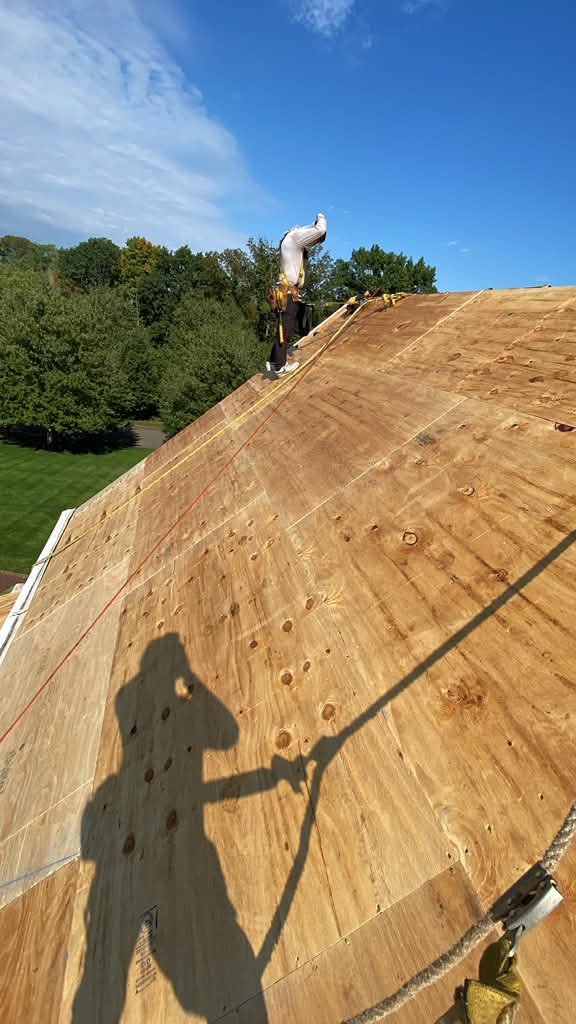

- Installed new exterior-grade plywood roof sheathing.
- Installed synthetic roofing underlayment and ice-and-water protection at vulnerable areas.
- Installed new gray-to-charcoal laminated architectural shingles across the main house and attached sections.
- Rebuilt and waterproofed valleys, hips, ridges, dormers, roof intersections, penetrations, and roof-to-wall transitions.
- Integrated chimney and penetration flashing into the new roofing system.
- Installed matching starter shingles and ridge-cap shingles at the roof edges, hips, and ridges.
- Protected landscaping, pool and patio areas, exterior walls, and access paths during tear-off and installation.
Materials and roofing details
The finished roof uses dimensional architectural asphalt shingles in a gray-to-charcoal blend. GAF-branded roofing materials were visible at the jobsite, but the exact shingle product and color name are not identified in the available photos, so this case study does not assign a specific product designation.
Supporting materials included new exterior-grade plywood, synthetic underlayment, ice-and-water membrane, roofing nails, starter shingles, ridge-cap shingles, flashing, sealants, replacement wood where required, and protective tarps. The new sheathing and underlayment created a sound, dried-in base before the finished shingles were installed.
Project result
The deteriorated roofing system was replaced with a complete new architectural shingle roof. Unsuitable decking was removed and replaced with new plywood, and the roof was dried in and waterproofed before the shingles were completed.
Finished sections show uniform architectural shingles, straight courses, consistent coverage, completed hips and ridges, and corrected valleys and intersections. The project delivered a full roofing-system upgrade rather than a surface-only reroof, while protecting the large landscaped property throughout construction.
Photo gallery
Manalapan Township roof replacement FAQs
Why was full roof replacement recommended?
The existing shingles were extensively worn, and multiple roof-deck areas had deteriorated from age and water exposure. Replacement was the appropriate way to address the complete roofing system instead of continuing with isolated repairs.
Was the roof deck replaced?
Yes. Large sections of deteriorated plywood sheathing were removed and replaced with new exterior-grade plywood. Serviceable framing and insulation were retained where appropriate.
What type of shingles were installed?
Gray-to-charcoal laminated architectural asphalt shingles were installed. GAF materials were visible on the jobsite, but the exact product name and color designation are not identified in the available photos.
How was the large property protected during tear-off?
The crew used tarps, organized staging, controlled material handling, and protection around the landscaping, pool, patios, exterior walls, and access paths below the steep roof sections.
What areas required detailed waterproofing?
The valleys, hips, ridges, dormers, chimney and other penetrations, roof-to-wall transitions, and intersecting roof planes all required focused underlayment, flashing, and shingle detailing.
Was this an emergency roof repair?
No. This was a scheduled full roof replacement and roof-deck replacement project completed over several days.
How large was the Manalapan roof?
The approximate roofing surface was 5,500–7,000 square feet across more than 10 interconnected roof planes. Final quantities depend on field measurements and the detailed roof layout.
Can a roof inspection identify decking problems?
An inspection can review shingle wear, valleys, flashing, penetrations, roof edges, accessible decking, attic symptoms, and prior repairs before deciding whether localized repair or full replacement is appropriate. Learn more about roof inspections and roof replacement.
